Versatile Performance, Day and Night

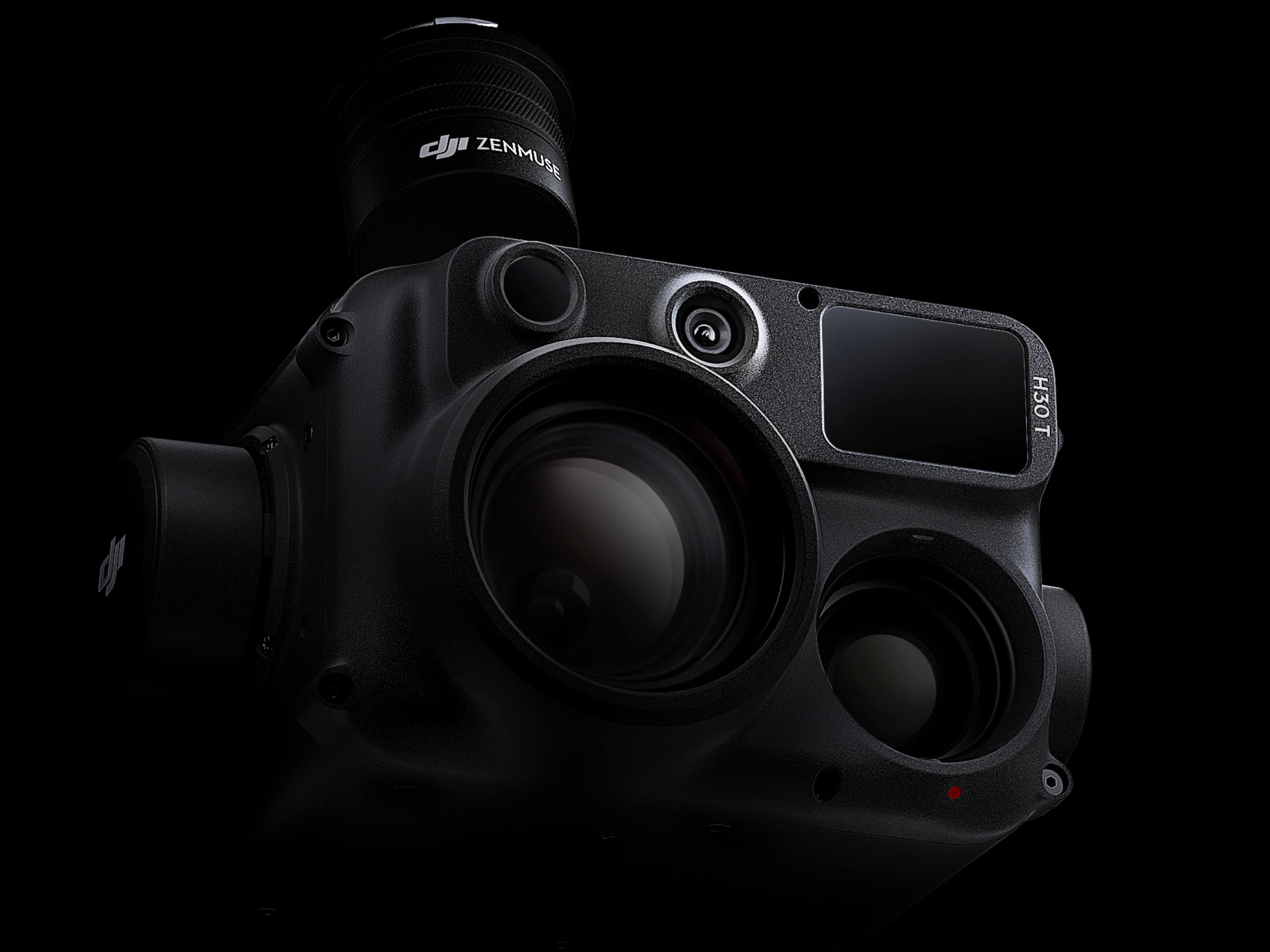

Zoom Camera
- Up to 34× Optical Zoom and 400× Digital Zoom - 40MP 1/1.8-inch CMOS Sensor - Video Resolution: Max 3840×2160@30fps
Wide-Angle Camera
- Equivalent Focal Length: 24mm, DFOV: 82.1° - 48MP 1/1.3-inch CMOS Sensor - Video Resolution: Max 3840×2160@30fps

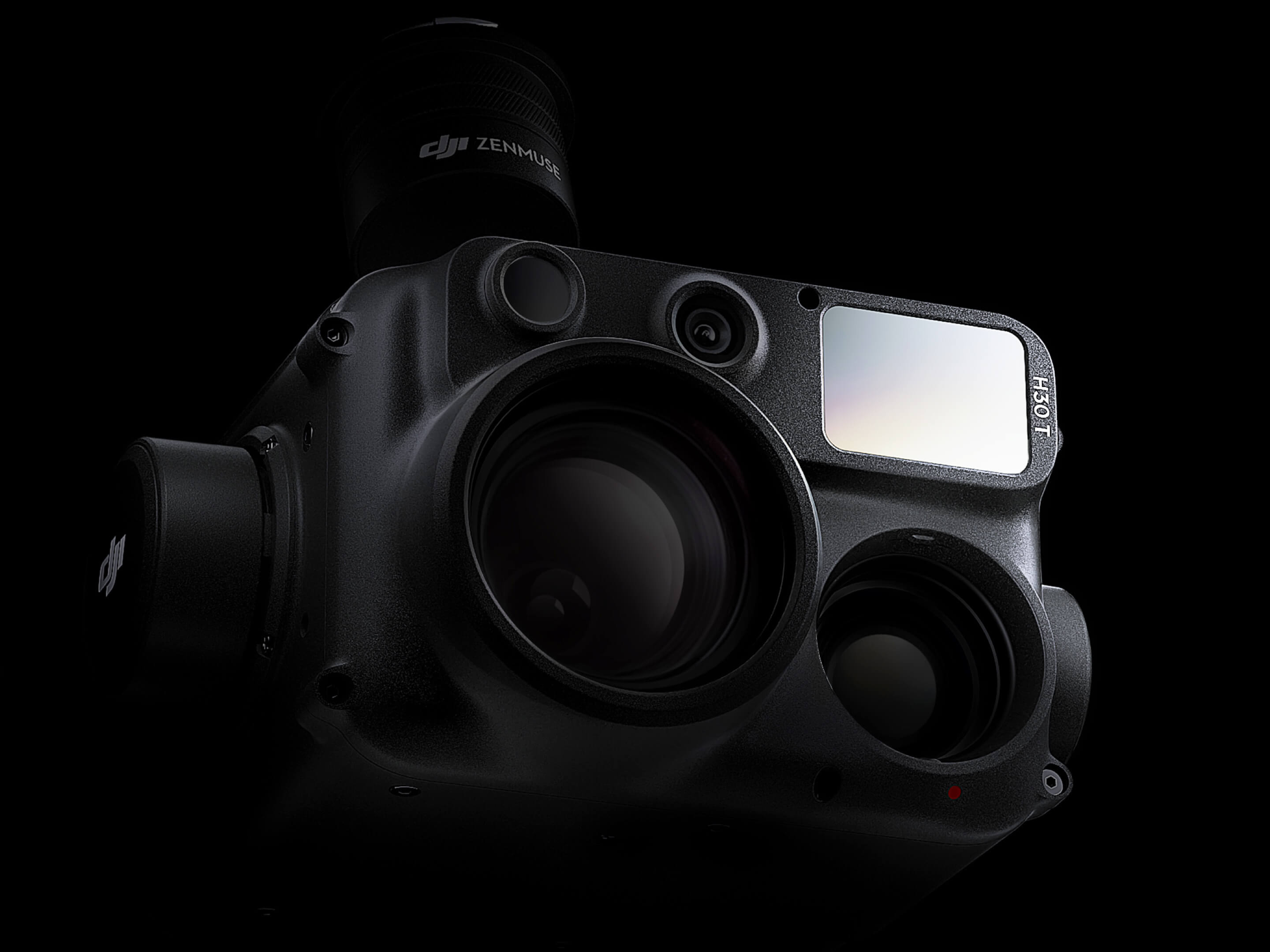

Laser Range Finder
- Measurement Range: 3-3000 m - Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%)> 500 m: ±1.0 m

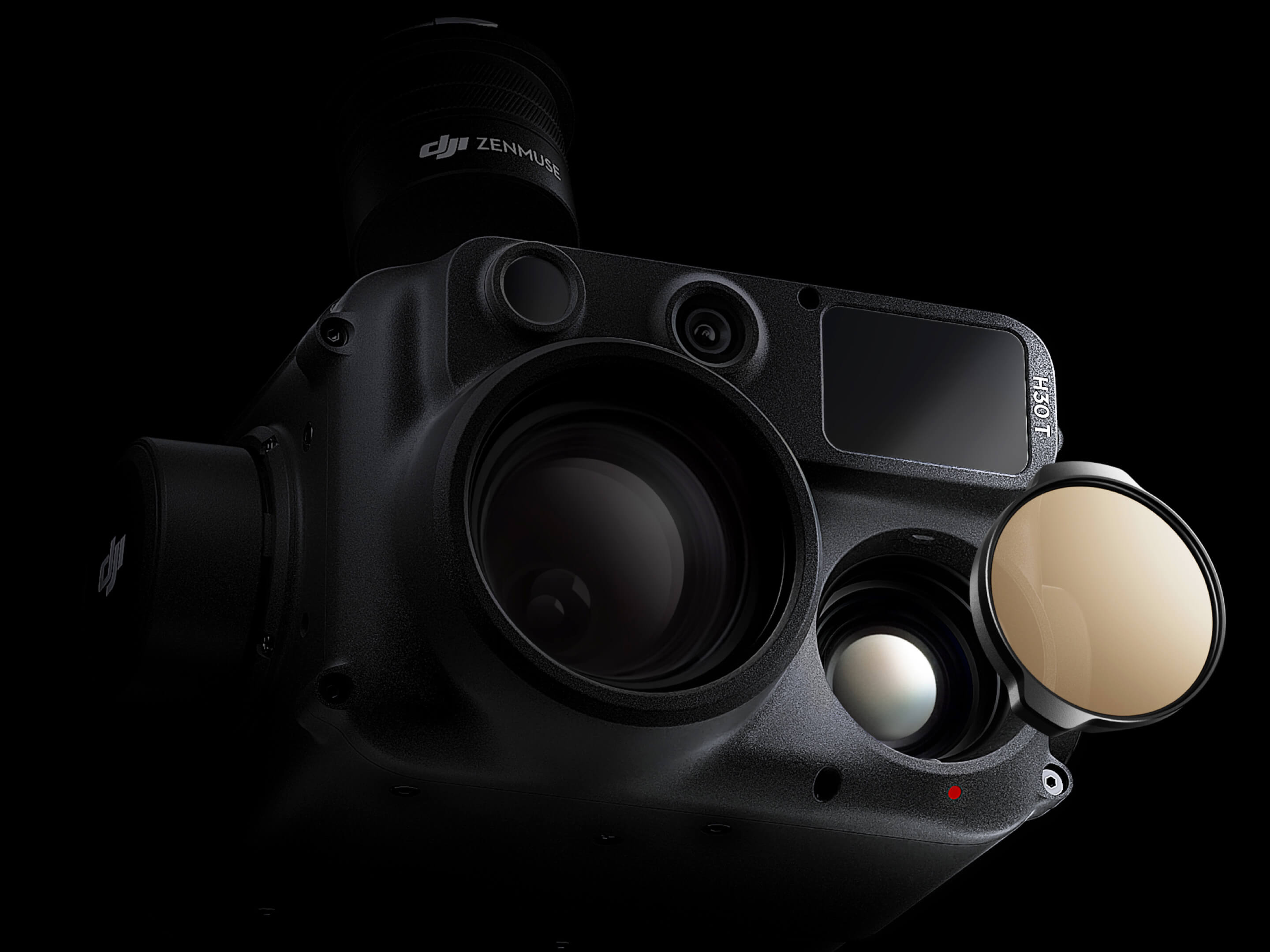

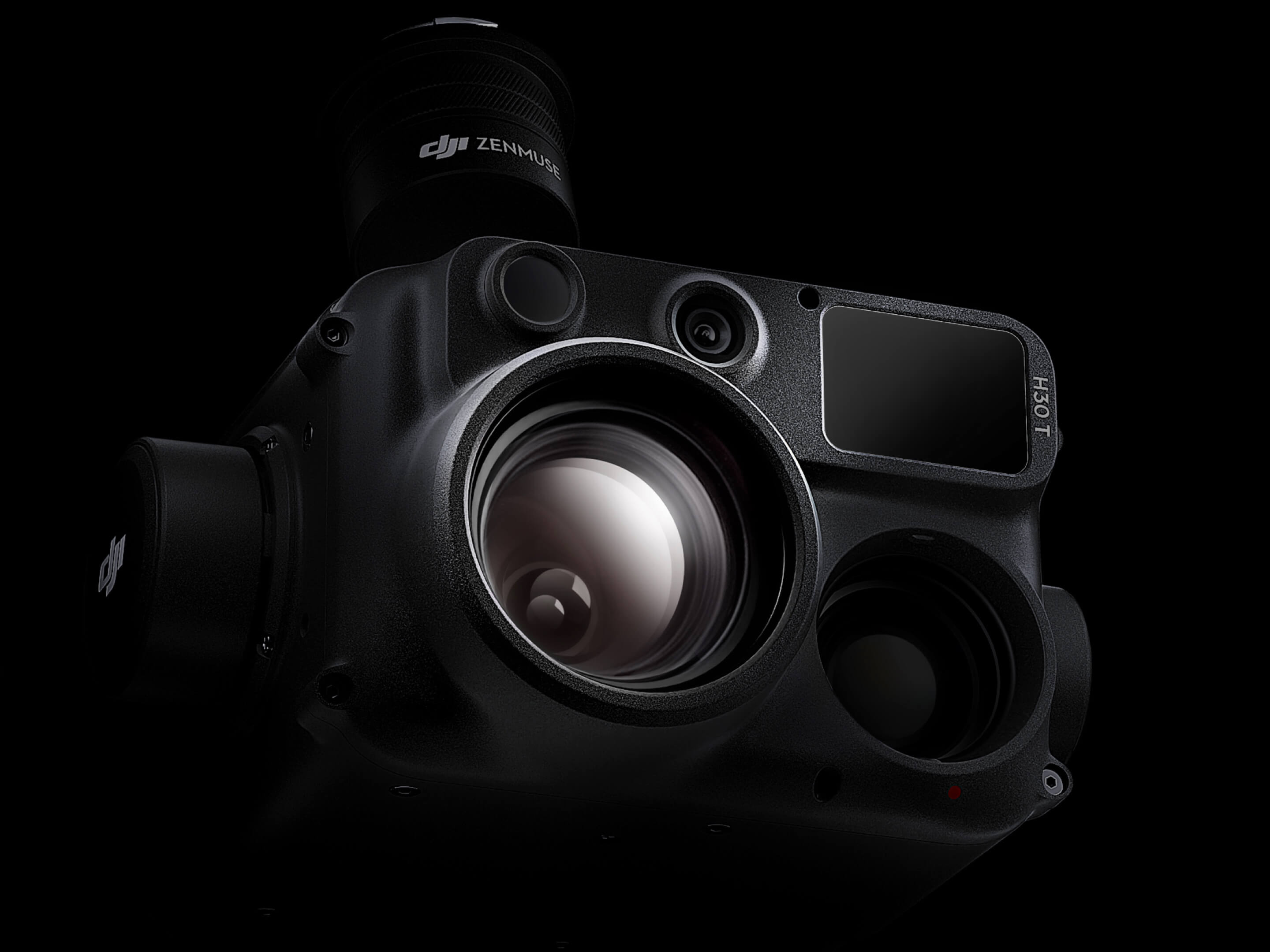

Infrared Thermal Camera (H30T only)
- Equivalent Focal Length: 52mm, DFOV: 45.2° - Uncooled VOx Microbolometer - Photo Resolution: 1280×1024 - Video Resolution: 1280×1024@30fps - Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F) [1]

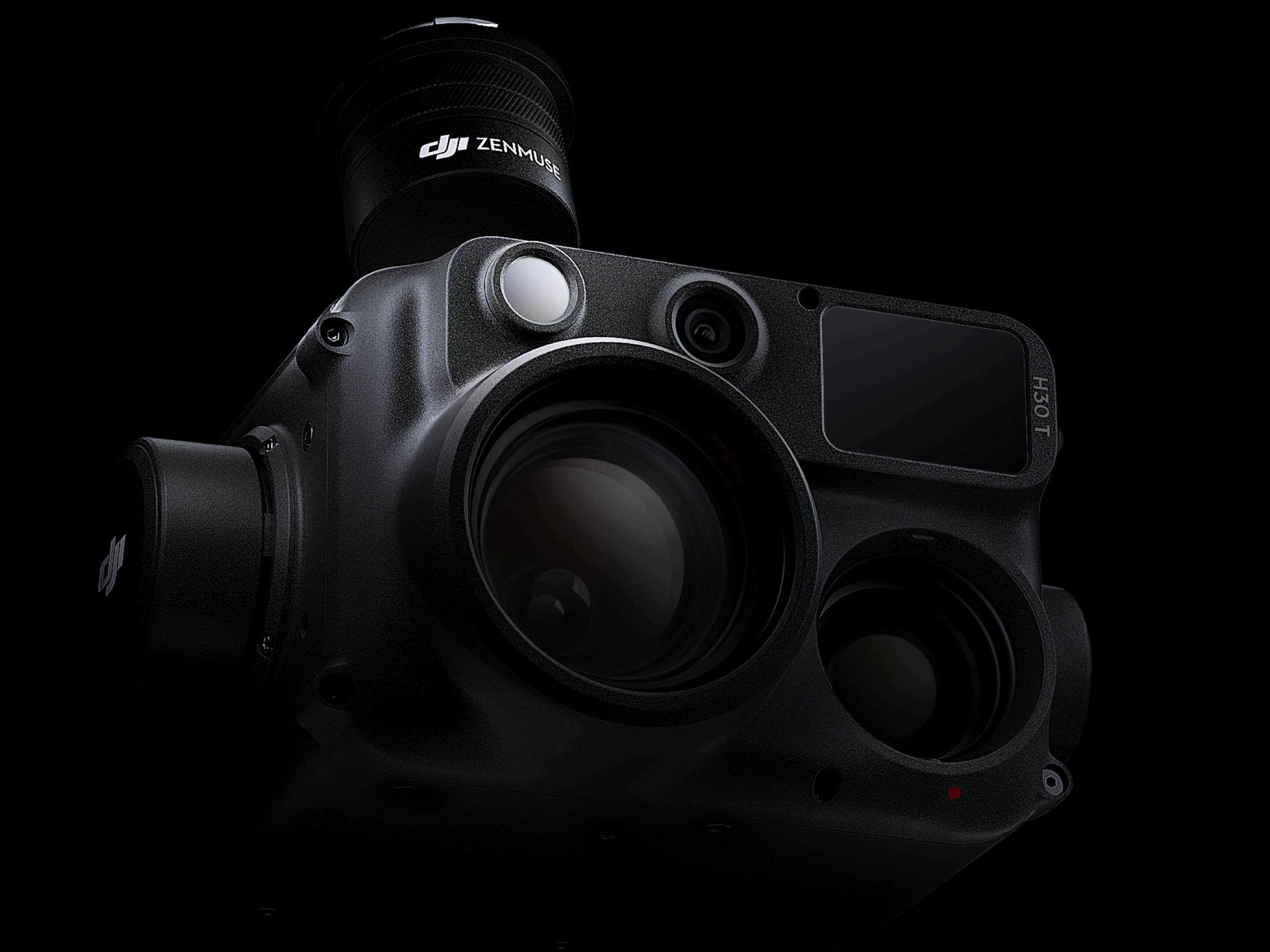

NIR Auxiliary Light
- Wavelength: 850 nm - FOV: 4.6±0.6° (Round) - Safety Rating: Class 1 - Illumination Range: Approx. 8m diameter circle at 100m distance
Further and Clearer Vision
Up to 34× Optical Zoom and 400× Digital Zoom

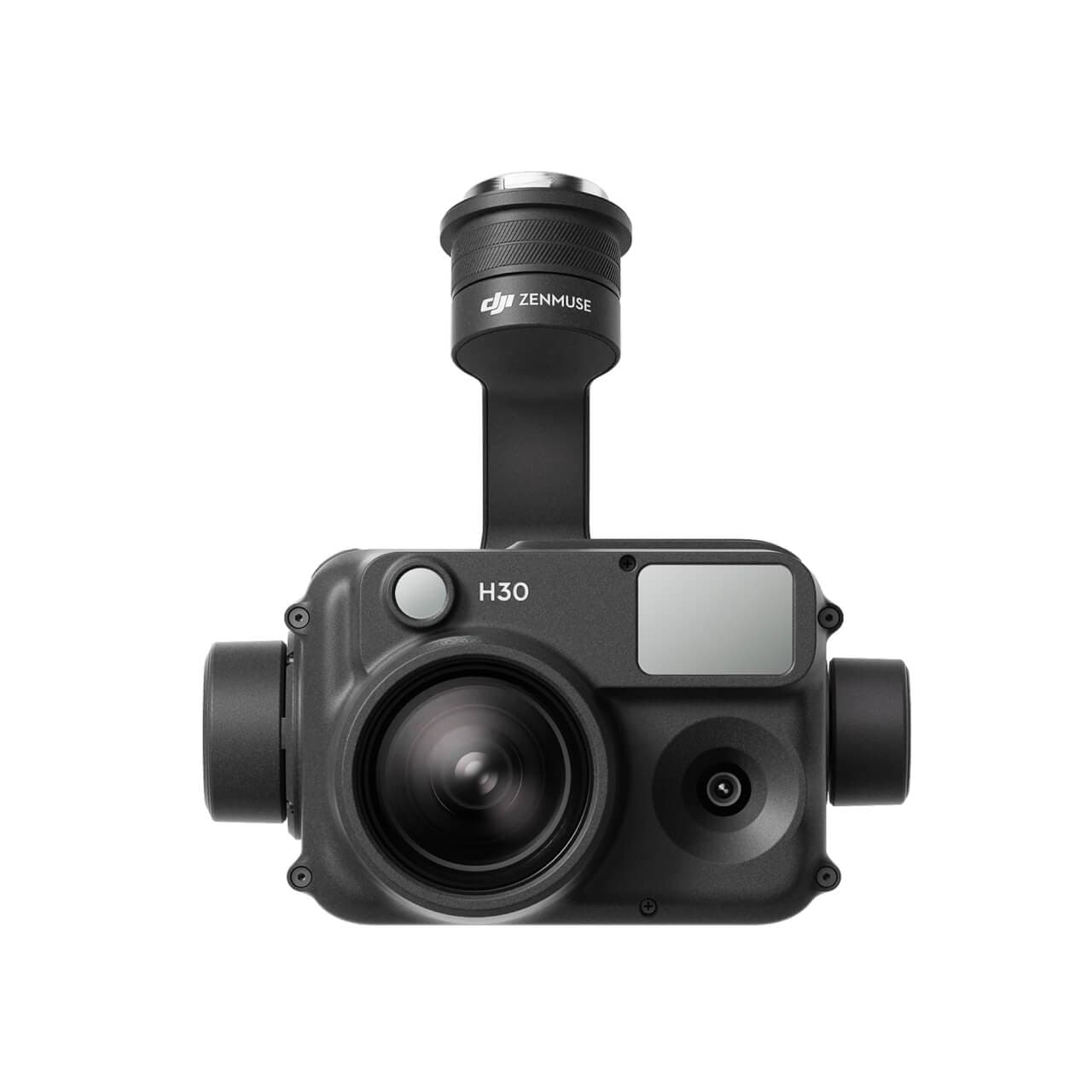

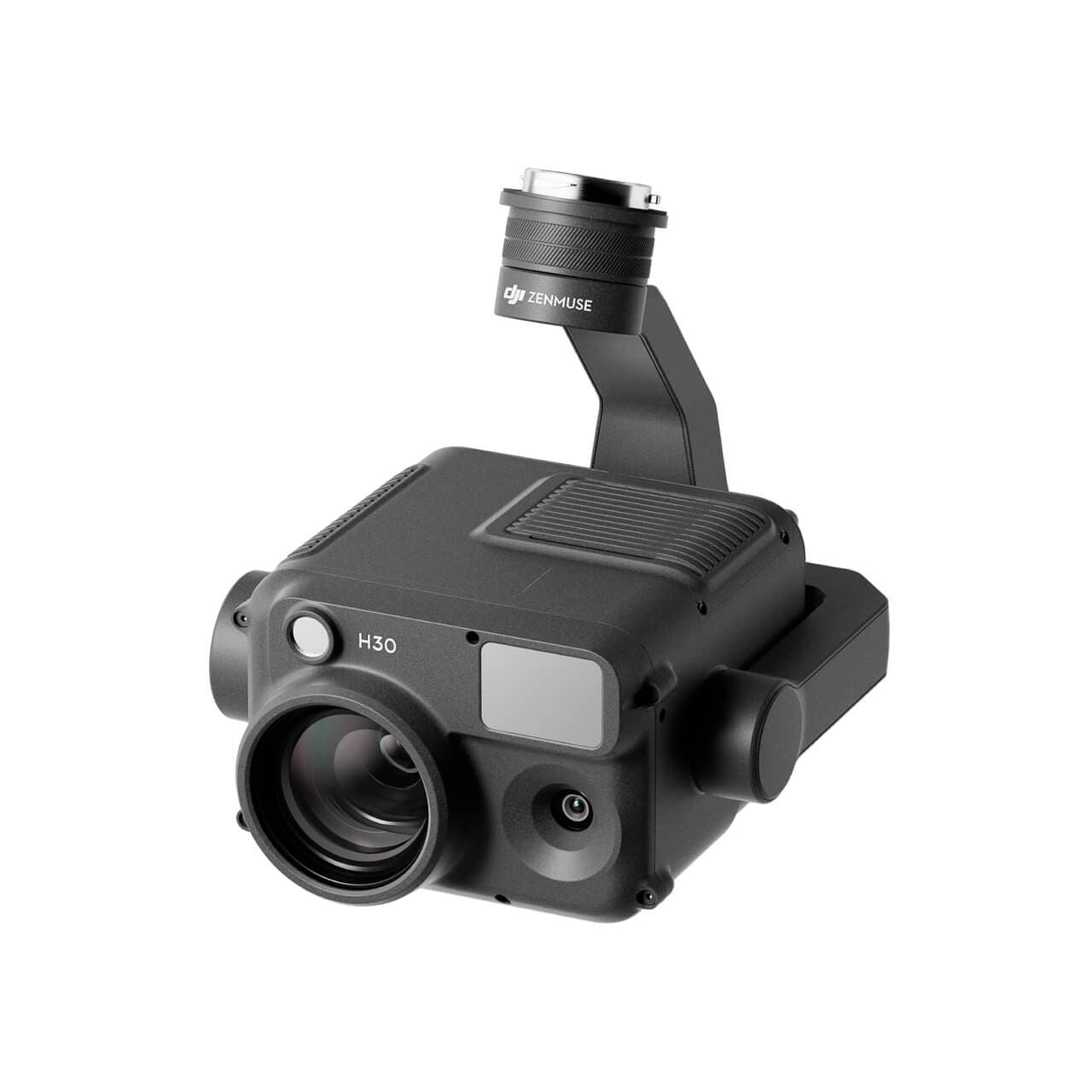

The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, [2] it not only observes subjects at greater distances but also captures more details.
More Stable Imagery from the Zoom Camera
With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.
Max 3000m Laser Range Finder
The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, [3] accurately capturing the position information of subjects within a range from 3 m to 3000 m, [4] including linear distance from the camera, altitude, and GPS coordinates.
