Roxtone

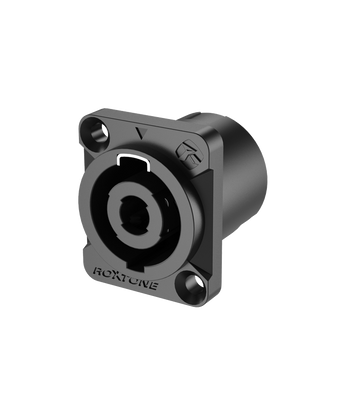

RO-RS4MD-S 4 pole Speaker male socket, Silver plated contacts

$3.12
Tax included.

FEATURES

  • Lockable 4 pin speaker connector
    • Brass contacts supply excellent contact and ensure the conductivity
    • Heavy duty zinc alloy insert for longlife use(RS4FP-HD)
    • Replaceable color ring on connector indicates cable of different equipment or length, easy for operation
    • Dust-proof design of the bushing makes the additional protection
    • Patent protected



TECHNICAL DATA
Housing PA6 30% GR
Insert PA66 20% GR
Latch Zinc Alloy diecast
Contacts Brass
Contacts plating Nickel
Strain relief POM
Color ring PA6 30% GR
Number of contacts 4
Rated current per contact 30 A rms
Cable O.D. range 6-12 mm



ENGINEERING DRAWING

AVAILABLE COLOUR RINGS
