Roxtone

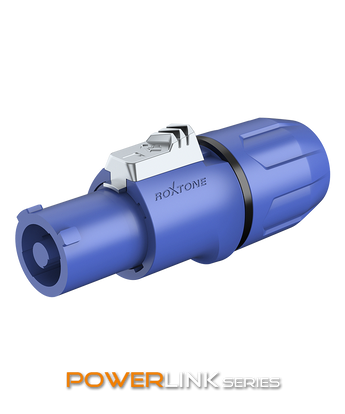

RO-RAC3FCI Power Link series power in connector

$12.90
Tax included.

FEATURES

  • Lockable 3 pole equipment(AC) connectors
    • Silver plated brass and brzone contacts supply excellent contact and conduction properties
    • Replaceable color ring on connector indicates cable of different equipment or length easy for works
  • Dust resistant bushing for longlife use
    • Raw material according with UL-V0 for safe use
    • 2 pieces strain-relief be provided for different cable diameter
    • Patent protected


Dust Proof Structure

TECHNICAL DATA
Housing PA6 30% GR
Insert PA66 20% GR
Latch Zinc Alloy diecast
Unitary contacts Brass
Contacts plating Nickel or Silver
Strain relief POM
Color ring PA6 20% GR
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Cable O.D. range 6-12 mm
Fammability UL V-0



ENGINEERING DRAWING

AVAILABLE COLOUR RINGS
