Roxtone

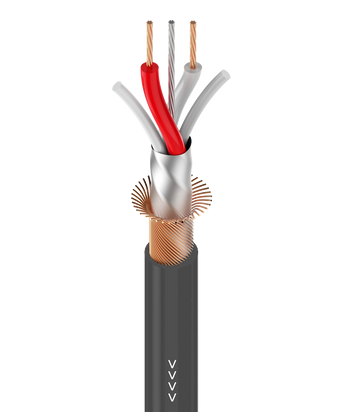

RO-DMX001L-100m-GY AES/EBU & DMX Cable, LSZH Jacket 5.0mm, 2×0.22mm2, 100m, Grey
$237.61
/
Tax included.
AES/EBU & DMX Cable, LSZH Jacket 5.0mm, 2×0.22mm2, 100m, Grey
Features
- Optimum shielding with dense copper spiral shielding + AL/PT-foil
- Small diameter, thus suitable for use with RCA-connectors
- Very reasonable price
- Low smoking and zero halogen suitable for permanent installation in places with specific security condition
Applications
- Studio patch cabling
- Control of lighting, scanner units, and displays
- Permanent installation
Cable Colour
- Black
| Technical Data | |
| Jacket, diameter | PVC 5.0 mm |
| AWG | 24 |
| No. of inner conductors | 2 x 0.22 mm² |
| Copper strand per conductor | 7 x 0.20 mm |
| Conductor insulation | PE 1.70 mm |
| Drain Wire | Tin plated copper 7 x 0.18 mm |
| Shielding | Copper spiral shielding
with 80 x 0.10 mm + AL/PT-foil+PE filler |
| Shielding factor | 100 % |
| Temperature range | min. -40 °C |
| Temperature range | max. 105 °C |
| Packaging | 100m roll |
| Electrical Data | |
| Capac. cond./cond. per 1 m | 45 pF |
| Cond. resistance per 1 km | < 85 Ω |
| Insulation resist. per 1 km | > 5 GΩ |
| Surge impedance | 120 Ω |
